Ethernet Failover

Binary + GOOSE Teleprotection
over E1 C37.94

Distance Protection over E1 and Optical (C37.94)

KEY FEATURES DATA SHEET

Overview

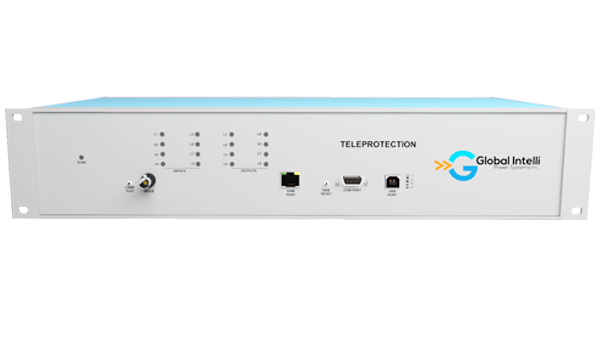

Teleprotection with IEC-61850 GOOSE interface over C37.94 (Optical) / E1 interface is an extremely reliable and flexible product that is available with 1+1 Link Redundancy (E1 + C37.94) or (C37.94 + C37.94), 1+1 Power Supply and 8, Digital Trip Counter Display Panel with 8 user configurable External Relay Alarm extensions. 1+1 redundant protection switching / route protection is available between C37.94 optical and E1 interfaces with automatic switchover to redundant link in the event of the failure of the primary link.

Teleprotection Equipment offers up to 8, 2-way independent command channels, operated selectively or simultaneously over a wide choice and a variety of transmission interfaces.

Network Side (Transmission) Interface Options:

  • IEEE C37.94 compliant Multi-Mode optical fiber interface for transmission over short-reach multi-mode optical fiber links
  • IEEE C37.94 compliant Single-Mode optical fiber interface for transmission over long-reach, single-mode optical fiber links (≤ 40 KM, ≤ 80 KM, ≤ 120 KM, ≤ 150 KM
  • E1, 2.048Mbps, G.703 interface option for transmission over E1 links.
  • Concurrently available C37.94 optical interface and E1 interface options.
  • 1+1 redundant automatic protection switching / route protection between C37.94 optical interface and E1 interface.
  • Automatic switchover to redundant link in the event of primary link failure.
  • User specified preferred primary interface.

Sub-Station Side Interface Options:

  • Bi-directional Transmission of 8 command Inputs and 8 command Outputs.
  • 110V DC and 250V DC command voltage and switching voltage options.
  • IEC-61850, GOOSE Interface.
  • Concurrent GOOSE Subscriber and Server functions.
  • Converts GOOSE Trip Message to Binary Command.
  • Converts Binary Command to GOOSE Trip Message.
  • Converts GOOSE Trip Message for transmission over C37.94 Optical / E1 (TDM).

Other Teleprotection transport media options:

Features

IEC 61850 GOOSE

GOOSE Input and routable IP Output

Fast Command Propagation

< 3ms command transfer time

Rugged Construction

Sub-station grade aluminum construction

Dual Protection

Option of Dual Protection Scheme

3U High

3U 19" Rack Mount

Electrical E1

Electrical E1 - 120 / 75 Ohms Distance Protection Interface

Features

  • Compact, standard 19-Inch Rack-mountable, 3U high chassis
  • Distance Teleprotection applications
  • Ready for use in IEC-61850 compliant Digital Sub-Stations with GOOSE and well is in “Legacy” Sub-Stations with Binary Commands
  • User programmable for Direct Tripping, Permissive Tripping and Blocking Protection Schemes
  • Compliant with IEC 60834-1 and IEC 834-1 specifications and standards for reliability
  • Optical Interface fully compliant with IEEE C37.94 for error resistant transmission
  • Use in a Standalone, Point-To-Point application
  • Use as an integrated part of the E1 Voice & Data Multiplexer solution over an SDH or PDH data network
  • Option of 1+1 Route / Path Protection between E1 + C37.94 Optical interfaces; or C37.94 + C37.94 Optical interfaces for point-to-point protected transmission links. “Automatic Fail-Over Switching” in the event of the failure of the Primary Link.
  • Bi-directional Transmission of 8 command Inputs and 8 command outputs
  • IRIG-B Time / NTP Synchronization.
  • Available with Trip Digital Display Counters (8/16) with 8 user configurable External Relay Alarm outputs
  • Full Duplex Operation.
  • Available with 48V DC, 110V DC, 220V DC and 250V DC command and switching voltage options.
  • Option of 1+1, Redundant Power Supply.
  • Available with 48V DC, 110V DC, 220V DC and 250V DC power supply options.
  • Immunity to Voltage Dips, Short Power Supply Interruptions and Voltage Variations as per IEC 61000-4-11 specifications.

Technical Specifications

Performance:

  • Less than 2ms command transfer time.
  • Less than 4ms relay operating time.
  • Less than 6ms back-to-back operating time (including relay operating time) in IEEE C37.94 Optical mode.
  • Less than 6ms back-to-back operating time (including relay operating time) in 2.048Mbps, E1 interface mode.

Flexibility and User Programmability:

  • User programmable parameters for “Input” command sampling time and “Output” command holding time.
  • Input Sampling Time - Sets the “Sampling Time” of the INPUT Commands.
  • Output Holding Time - Sets the “Holding Time” of the OUTPUT Commands.
  • Output Extend Time - Sets the “Minimum Deactivation Time” of the OUTPUT Commands.

Event and Alarm Logging:

  • Time-Stamped Alarm Logging.
  • Time-Stamped Event Logging.
  • IRIG-B time / NTP synchronization option to synchronize time-stamps with GPS.

Maintenance:

  • Manual Loop Test This feature initiates a “Manual Loop-Test” of the transmission link that interconnects the “Local” Teleprotection Terminal and the “Remote” Teleprotection Terminal
  • Automatic Loop Test The Automatic Link Test feature automatically initiates “Periodic Loop Tests” at user programmed intervals of the transmission link that interconnects the “Local” Teleprotection Terminal and the “Remote” Teleprotection Terminal
  • Delay Measurement This feature automatically initiates an end-to-end “Delay Measurement Test” between the “Local” and the “Remote” Teleprotection Terminal through the interconnecting transmission link.

Access and Monitoring:

  • Command Line Interface (English text commands).
  • Telnet
  • SSH
  • SNMPv2 Traps.

Operations and Management (OAM):

  • RS232 serial interface for local terminal access
  • USB serial interfaces for local terminal access
  • 10/100BaseT Ethernet Interface for remote access over an IP network.

Management and Monitoring:

  • RS232 serial, USB serial interfaces for local terminal access
  • 10/100BaseT Ethernet Interface for remote access over an IP network
  • Encrypted Password Protection
  • Maintains an access log of over 10,000 most recent entries for security audit
  • Telnet - Remote access over IP links
  • SSH - Secured remote access using “Secure Shell Protocol” over IP links
  • SNMP Traps and NMS for real time remote monitoring and management over an IP network
  • IEC-61850 Complaint Monitoring and Management System
  • 8, Dry contact external alarm relay to connect external alarms on an annunciator panel to extend audio and / or visual alarms – Optional
  • Trip Counter Display
